| Outline | Model | Dimension (mm) | Frequency Range (MHz) | Tolerance Options (ppm) | Stability Options (ppm) | Operating Temp Range Options | ECAD | Distributor Inventory | Specification |
|---|---|---|---|---|---|---|---|---|---|
 | C16 Auto | 1.6x1.2x0.4 | 24.000 ~ 60.000 | ±10 ~ ±30 | ±20 ±30 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |
 | C1E Auto | 2.0x1.6x0.5 | 16.000 ~ 96.000 | ±10 ~ ±30 | ±20 ±30 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |
 | C2E Auto | 2.5x2.0x0.65 | 12.000 ~ 133.000 | ±10 ~ ±30 | ±20 ±30 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |
 | C3E Auto | 3.2x2.5x0.75 | 8.000 ~ 150.000 | ±10 ~ ±30 | ±20 ±30 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |
 | C4S Auto | 4.0x2.5x0.8 | 12.000 ~ 52.000 | ±10 ~ ±30 | ±20 ±30 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |
 | C5S Auto | 5.0x3.2x1.0 | 8.000 ~133.000 | ±10 ~ ±30 | ±20 ±30 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |

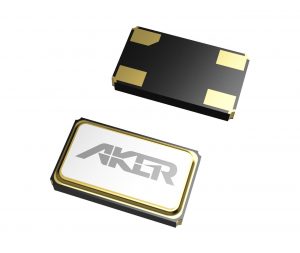

 | C6S Auto | 6.0x3.5x1.1 | 8.000 ~133.000 | ±10 ~ ±30 | ±20 ±30 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |

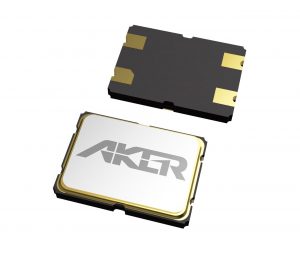

 | C7S Auto | 7.0x5.0x1.1 | 6.000 ~133.000 | ±10 ~ ±30 | ±20 ±30 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |
| Outline | Model | Dimension (mm) | Frequency Range (MHz) | Voltage Options (V) | Stability Options (ppm) | Operating Temp Range Options | ECAD | Distributor Inventory | Specification |
|---|---|---|---|---|---|---|---|---|---|
 | S1 Auto | 2.0x1.6x0.8 | 2.000 ~ 50.000 | 0.9 to 3.3V and muti-volt 1.62~3.63 | ±25 ±40 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |
 | S2 Auto | 2.5x2.0x0.95 | 2.000 ~ 50.000 | 0.9 to 3.3V and muti-volt 1.62~3.63 | ±25 ±40 ±50 | −40 ~ +85℃ −40 ~ +105℃ −40 ~ +125℃ |
| Inventory | Download |

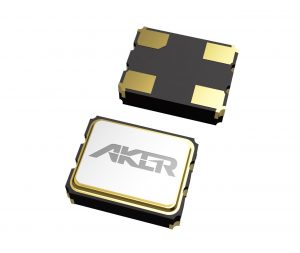

 | S3 Auto | 3.2x2.5x1.2 | 2.000 ~ 54.000 | 0.9 to 3.3V and muti-volt 1.62~3.63 | ±25 ±40 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |
 | S5 Auto | 5.0x3.2x1.3 | 1.000 ~ 50.000 | 0.9 to 5.0V and muti-volt 1.62~3.63 | ±25 ±40 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |
| S5 Auto | 5.0x3.2x1.3 | 1.000 ~ 75.000 | 2.5 | ±25 ±40 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |
| S5 Auto | 5.0x3.2x1.3 | 1.000 ~ 135.000 | 3.3 | ±25 ±40 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |
 | S7 Auto | 7.0x5.0x1.4 | 1.000 ~ 40.000 | 0.9 to 5.0V and muti-volt 1.62~3.63 | ±25 ±40 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |
| S7 Auto | 7.0x5.0x1.4 | 1.000 ~ 75.000 | 2.5 | ±25 ±40 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |
| S7 Auto | 7.0x5.0x1.4 | 1.000 ~ 135.000 | 3.3 | ±25 ±40 ±50 | −40~+85℃ −40~+105℃ −40~+125℃ |
| Inventory | Download |
| Outline | Model | Dimension (mm) | Frequency Range (MHz) | Voltage Options (V) | Stability Options (ppm) | Operating Temp Range Options | ECAD | Distributor Inventory | Specification |
|---|---|---|---|---|---|---|---|---|---|
 | S2A Auto LVPECL | 2.5x2.0x0.95 | 13.500 ~ 200.000 | +2.5 ` +3.3 | ±20 ±25 ±30 ±50 | -20 ~ +70°C -40 ~ +85°C -40 ~ +105°C -40 ~ +125°C |
| Inventory | Download |
 | S3A Auto LVPECL | 3.2x2.5x1.1 | 13.500 ~ 200.000 | +2.5 ` +3.3 | ±20 ±25 ±30 ±50 | -20 ~ +70°C -40 ~ +85°C -40 ~ +105°C -40 ~ +125°C |
| Inventory | Download |
 | S5A Auto LVPECL | 5.0x3.2x1.3 | 13.500 ~ 160.000 | +2.5 ` +3.3 | ±20 ±25 ±30 ±50 | -20 ~ +70°C -40 ~ +85°C -40 ~ +105°C -40 ~ +125°C |
| Inventory | Download |
 | S7A Auto LVPECL | 7.0x5.0x1.4 | 13.500 ~ 160.000 | +2.5 ` +3.3 | ±20 ±25 ±30 ±50 | -20 ~ +70°C -40 ~ +85°C -40 ~ +105°C -40 ~ +125°C |
| Inventory | Download |
| Outline | Model | Dimension (mm) | Frequency Range (MHz) | Voltage Options (V) | Stability Options (ppm) | Operating Temp Range Options | ECAD | Distributor Inventory | Specification |
|---|---|---|---|---|---|---|---|---|---|
| S2A Auto LVDS | 2.5x2.0x0.95 | 13.500 ~ 200.000 | +1.8 ` +2.5 ` +3.3 | ±20 ±25 ±30 ±50 | -20 ~ +70°C -40 ~ +85°C -40 ~ +105°C -40 ~ +125°C |
| Inventory | Download |
| S3A Auto LVDS | 3.2x2.5x1.1 | 13.500 ~ 200.000 | +1.8 ` +2.5 ` +3.3 | ±20 ±25 ±30 ±50 | -20 ~ +70°C -40 ~ +85°C -40 ~ +105°C -40 ~ +125°C |
| Inventory | Download |
| S5A Auto LVDS | 5.0x3.2x1.3 | 13.500 ~ 160.000 | +1.8 ` +2.5 ` +3.3 | ±20 ±25 ±30 ±50 | -20 ~ +70°C -40 ~ +85°C -40 ~ +105°C -40 ~ +125°C |
| Inventory | Download |

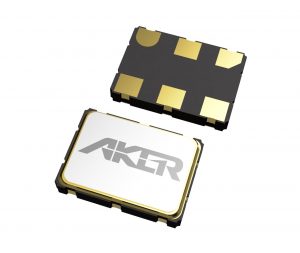

| S7A Auto LVDS | 7.0x5.0x1.4 | 13.500 ~ 160.000 | +1.8 ` +2.5 ` +3.3 | ±20 ±25 ±30 ±50 | -20 ~ +70°C -40 ~ +85°C -40 ~ +105°C -40 ~ +125°C |
| Inventory | Download |
| Outline | Model | Dimension (mm) | Frequency Range (MHz) | Voltage Options (V) | Stability Options (ppm) | Operating Temp Range Options | ECAD | Distributor Inventory | Specification |
|---|---|---|---|---|---|---|---|---|---|
| S2A Auto HCSL | 2.5x2.0x0.95 | 13.500 ~ 200.000 | +1.8 ` +2.5 ` +3.3 | ±20 ±25 ±30 ±50 | -20 ~ +70°C -40 ~ +85°C -40 ~ +105°C -40 ~ +125°C |
| Inventory | Download |
| S3A Auto HCSL | 3.2x2.5x1.1 | 13.500 ~ 200.000 | +1.8 ` +2.5 ` +3.3 | ±20 ±25 ±30 ±50 | -20 ~ +70°C -40 ~ +85°C -40 ~ +105°C -40 ~ +125°C |
| Inventory | Download |
| S5A Auto HCSL | 5.0x3.2x1.3 | 13.500 ~ 160.000 | +1.8 ` +2.5 ` +3.3 | ±20 ±25 ±30 ±50 | -20 ~ +70°C -40 ~ +85°C -40 ~ +105°C -40 ~ +125°C |
| Inventory | Download |
| S7A Auto HCSL | 7.0x5.0x1.4 | 13.500 ~ 160.000 | +1.8 ` +2.5 ` +3.3 | ±20 ±25 ±30 ±50 | -20 ~ +70°C -40 ~ +85°C -40 ~ +105°C -40 ~ +125°C |
| Inventory | Download |
| Outline | Model | Dimension (mm) | Frequency Range (MHz) | Voltage Options (V) | Stability Options (ppm) | Operating Temp Range Options | ECAD | Distributor Inventory | Specification |
|---|---|---|---|---|---|---|---|---|---|

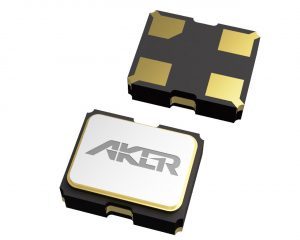

 | TX21 Auto | 2.0x1.6x0.8 | 10.000 ~ 52.000 | 1.8、2.5、3.3 、1.68~3.63 | ±0.5 ±2.0 | −20~+70℃ −40~+85℃ |
| Inventory | Download |

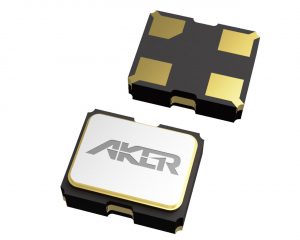

| TX22 Auto | 2.5x2.0x0.95 | 10.000 ~ 52.000 | 1.8、2.5、3.3 、1.68~3.63 | ±0.5 ±2.0 | −20~+70℃ −40~+85℃ |
| Inventory | Download |

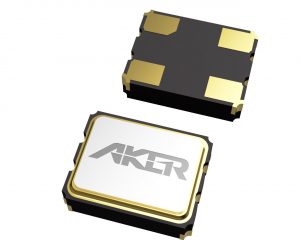

| TX32 Auto | 3.2x2.5x1.2 | 10.000 ~ 52.000 | 1.8、2.5、3.3 、1.68~3.63 | ±0.5 ±2.0 | −20~+70℃ −40~+85℃ |
| Inventory | Download |
| Outline | Model | Dimension (mm) | Frequency Range (MHz) | Voltage Options (V) | Stability Options (ppm) | Operating Temp Range Options | ECAD | Distributor Inventory | Specification |
|---|---|---|---|---|---|---|---|---|---|
| TV21 Auto | 2.0x1.6x0.8 | 10.000 ~ 52.000 | 1.8、2.5、3.3 | ±0.5 ±2.0 | −20~+70℃ −40~+85℃ |
| Inventory | Download |
| TV22 Auto | 2.5x2.0x0.95 | 10.000 ~ 52.000 | 1.8、2.5、3.3 | ±0.5 ±2.0 | −20~+70℃ −40~+85℃ |
| Inventory | Download |
| TV32 Auto | 3.2x2.5x1.2 | 10.000 ~ 52.000 | 1.8、2.5、3.3 | ±0.5 ±2.0 | −20~+70℃ −40~+85℃ |
| Inventory | Download |
