Oscillator Products

XO • HCMOS

OutlineModelDimension (mm)Frequency Range (MHz)Voltage Options (V)Stability Options (ppm)Operating Temp Range OptionsECADDistributor InventorySpecification
S1S12.0x1.6x0.82.000 ~ 50.000 1.8、2.5、3.3 、1.62~3.63±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S2S22.5x2.0x0.952.000 ~ 50.0001.8、2.5、3.3 、5、1.62~3.63±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S2S22.5x2.0x0.952.000~125.0003.3±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S3S33.2x2.5x1.21.000 ~ 54.0001.8、2.5、3.3 、5、1.62~3.63±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S3S33.2x2.5x1.21.0000~75.0002.5、3.3±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S3S33.2x2.5x1.21.0000~156.2503.3±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S5S55.0x3.2x1.30.5000 ~ 50.0001.8、2.5、3.3 、5、1.62~3.63±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S5S55.0x3.2x1.30.5000~ 75.0002.5、3.3±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S5S55.0x3.2x1.30.5000~ 156.250003.3±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S7S77.0x5.0x1.40.5000~ 40.0001.8、2.5、3.3 、5、1.62~3.63±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S7S77.0x5.0x1.40.5000~ 75.0002.5、3.3±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S7S77.0x5.0x1.40.5000~ 156.250003.3±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download

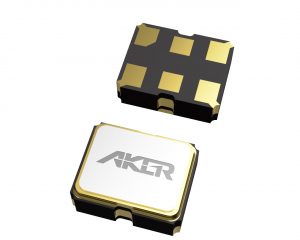

XO • LVPECL

OutlineModelDimension (mm)Frequency Range (MHz)Voltage Options (V)Stability Options (ppm)Operating Temp Range OptionsECADDistributor InventorySpecification
S2AS2A LVPECL2.5x2.0x1.113.500 ~ 156.250 +2.5、+3.3 ±20
±25
−20~+70℃
−40~+85℃
Inventory Download
S3AS3A LVPECL3.2x2.5x1.113.500 ~ 156.250+2.5、+3.3±20
±25
−20~+70℃
−40~+85℃
Inventory Download
S5A LVDSS5A LVPECL5.0x3.2x1.313.500 ~ 800.000 +2.5、+3.3 ±20
±25
−20~+70℃
−40~+85℃
Inventory Download
S7A LVDSS7A LVPECL7.0x5.0x1.413.500 ~ 800.000+2.5、+3.3±20
±25
−20~+70℃
−40~+85℃
Inventory Download

XO • LVDS

OutlineModelDimension (mm)Frequency Range (MHz)Voltage Options (V)Stability Options (ppm)Operating Temp Range OptionsECADDistributor InventorySpecification
S2AS2A LVDS2.5x2.0x1.113.500 ~ 156.250+1.8、+2.5、+3.3 ±20
±25
−20~+70℃
−40~+85℃
Inventory Download
S3AS3A LVDS3.2x2.5x1.113.500 ~ 156.250 +1.8、+2.5、+3.3±20
±25
−20~+70℃
−40~+85℃
Inventory Download
S5A LVDSS5A LVDS5.0x3.2x1.313.500 ~ 800.000 +1.8、+2.5、+3.3 ±20
±25
−20~+70℃
−40~+85℃
Inventory Download
S7A LVDSS7A LVDS7.0x5.0x1.413.500 ~ 800.000+1.8、+2.5、+3.3±20
±25
−20~+70℃
−40~+85℃
Inventory Download

XO • HCSL

OutlineModelDimension (mm)Frequency Range (MHz)Voltage Options (V)Stability Options (ppm)Operating Temp Range OptionsECADDistributor InventorySpecification
S2AS2A HCSL2.5x2.0x1.113.500 ~ 156.250+1.8、+2.5、+3.3±20
±25
-20~+70℃
-40~+85℃
Inventory Download
S2AS2ALP LPHCSL2.5x2.0x1.195.000 ~ 160.000 +1.8, +2.5, +3.3, +1.71~+3.63±25
±50
±100
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S3AS3A HCSL3.2x2.5x1.113.500 ~ 156.250+1.8、+2.5、+3.3±20
±25
-20~+70℃
-40~+85℃
Inventory Download
S3AS3ALP LPHCSL3.2x2.5x1.195.000 ~ 160.000 +1.8, +2.5, +3.3, +1.71~+3.63±25
±50
±100
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S5A LVDSS5A HCSL5.0x3.2x1.313.500 ~ 156.250+1.8、+2.5、+3.3±20
±25
-20~+70℃
-40~+85℃
Inventory Download
S5A LVDSS5A LPHCSL5.0x3.2x1.395.000 ~ 160.000 1.8, 2.5, 3.3, 1.71~3.63 ±25
±50
±100
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S7A LVDSS7A HCSL7.0x5.0x1.413.500 ~ 160.000+1.8、+2.5、+3.3±20
±25
-20~+70℃
-40~+85℃
Inventory Download
S7A LVDSS7A LPHCSL7.0x5.0x1.495.000 ~ 160.000 1.8, 2.5, 3.3, 1.71~3.63 ±25
±50
±100
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download

XO • 32.768 kHz

OutlineModelDimension (mm)Frequency Range (KHz)Voltage Options (V)Stability Options (ppm)Operating Temp Range OptionsECADDistributor InventorySpecification

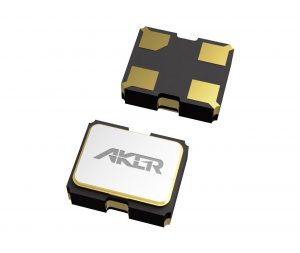

S16S16-32.768Khz1.6x1.2x0.732.7681.8、2.5、3.3 、1.62~3.63±25
±30
±50
±100
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S1S1-32.768Khz2.0x1.6x0.832.7681.8、2.5、3.3 、1.62~3.63±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S2S2-32.768khz2.5x2.0x0.9532.7681.8、2.5、3.3 、1.62~3.63±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S3S3-32.768khz3.2x2.5x1.232.7681.8、2.5、3.3 、1.62~3.63±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S5 S5-32.768khz5.0x3.2x1.332.7681.8、2.5、3.3 、1.62~3.63±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download
S7S7-32.768khz7.0x5.0x1.432.7681.8、2.5、3.3 、1.62~3.63±20
±30
±40
±50
-20~+70℃
-40~+85℃
-40~+105℃
-40~+125℃
Inventory Download

XO • Programmable

OutlineModelDimension (mm)Frequency Range (MHz)Voltage Options (V)Stability Options (ppm)Operating Temp Range OptionsECADDistributor InventorySpecification
S2S2P2.5x2.0x0.951.000 - 125.0001.8±25
±50
−20~+70℃
−40~+85℃
Inventory Download
S2S2P2.50x2.0x0.951.000 - 200.0002.5, 3.3±25
±50
−20~+70℃
−40~+85℃
Inventory Download
S3S3P3.2x2.5x1.21.000 ~ 110.000+1.8±20
±25
−20~+70℃
−40~+85℃
Inventory Download
S3S3P3.2x2.5x1.21.000 ~ 166.000+2.5±20
±25
−20~+70℃
−40~+85℃
Inventory Download
S3S3P3.2x2.5x1.21 .000 ~ 200.000+3.3±20
±25
−20~+70℃
−40~+85℃
Inventory Download
S5S5P5.0x3.2x1.31.000 ~ 110.000+1.8±20
±25
−20~+70℃
−40~+85℃
Inventory Download
S5S5P5.0x3.2x1.31.000 ~ 166.000+2.5±20
±25
−20~+70℃
−40~+85℃
Inventory Download
S5S5P5.0x3.2x1.31 .000 ~ 200.000+3.3±20
±25
−20~+70℃
−40~+85℃
Inventory Download
S7S7P7.0x5.0x1.41.000 ~ 110.000+1.8±20
±25
−20~+70℃
−40~+85℃
Inventory Download
S7S7P7.0x5.0x1.41.000 ~ 166.000+2.5±20
±25
−20~+70℃
−40~+85℃
Inventory Download
S7S7P7.0x5.0x1.41 .000 ~ 200.000+3.3±20
±25
−20~+70℃
−40~+85℃
Inventory Download

XO Low EMI

OutlineModelDimension (mm)Frequency Range (MHz)Voltage Options (V)Stability Options (ppm)Operating Temp Range OptionsECADDistributor InventorySpecification
S2S2 Low EMI2.5x2.0x0.9520.000~40.000+1.8±25
±30
±40
±50
−20~+70℃
−40~+85℃
−40~+105℃
−40~+125℃
Inventory Download
S2S2 Low EMI2.5x2.0x0.9520.000~40.000+2.5±25
±30
±40
±50
−20~+70℃
−40~+85℃
−40~+105℃
−40~+125℃
Inventory Download
S3S3 Low EMI 3.2x2.5x1.2 20.000~40.000 +1.8 ±25
±30
±40
±50
−20~+70℃
−40~+85℃
−40~+105℃
−40~+125℃
Inventory Download
S3S3 Low EMI 3.2x2.5x1.2 20.000~40.000 +2.5 ±25
±30
±40
±50
−20~+70℃
−40~+85℃
−40~+105℃
−40~+125℃
Inventory Download
S5S5 Low EMI5.0x3.2x1.21.000~200.000+2.5±25
±30
±40
±50
−20~+70℃
−40~+85℃
Inventory Download
S5S5 Low EMI5.0x3.2x1.21.000~200.000+3.3±25
±30
±40
±50
−20~+70℃
−40~+85℃
Inventory Download
S7S7 Low EMI7.0x5.0x1.31.000~200.000 +2.5±25
±30
±40
±50
−20~+70℃
−40~+85℃
Inventory Download
S7S7 Low EMI7.0x5.0x1.31.000~200.000 +3.3±25
±30
±40
±50
−20~+70℃
−40~+85℃
Inventory Download

TCXO - Clipped Sinewave

OutlineModelDimension (mm)Frequency Range (MHz)Voltage Options (V)Stability Options (ppm)Operating Temp Range OptionsECADDistributor InventorySpecification
TX22-imgTX212.0x1.6x0.810.000 ~ 52.0001.8、2.5、3.3 、1.68~3.63±0.5
±2.0
−30℃~+85℃
−40℃~+105℃
Inventory Download
TX22-imgTX222.5x2.0x0.9510.000 ~ 52.0001.8、2.5、3.3 、1.68~3.63±0.5
±2.0
−30℃~+85℃
−40℃~+105℃
Inventory Download
TX32-imgTX323.2x2.5x1.210.000 ~ 52.0001.8、2.5、3.3 、1.68~3.63±0.5
±2.0
−30℃~+85℃
−40℃~+105℃
Inventory Download
TX22TX22ED2.5x2.0x0.9513.000 - 52.0001.2V±0.5
±2.0
−30℃~+85℃
−40℃~+85℃
Inventory Download
TX32TX32ED3.2x2.5x1.2013.000 - 52.0001.2V±0.5
±2.0
−30℃~+85℃
−40℃~+85℃
Inventory Download

TCXO - HCMOS

OutlineModelDimension (mm)Frequency Range (MHz)Voltage Options (V)Stability Options (ppm)Operating Temp Range OptionsECADDistributor InventorySpecification
TX32-imgTXH22 - CMOS2.5x2.0x0.958.000 ~ 52.0001.8、2.5、3.3 、1.68~3.63±2.5−30℃~+85℃
−40℃~+105℃
Inventory Download
TX32-imgTXH32 - CMOS3.2x2.5x1.28.000 ~ 52.0001.8、2.5、3.3 、1.68~3.63±2.5−30℃~+85℃
−40℃~+105℃
Inventory Download

VCTCXO

OutlineModelDimension (mm)Frequency Range (MHz)Voltage Options (V)Stability Options (ppm)Operating Temp Range OptionsECADDistributor InventorySpecification
TX21TV212.0x1.6x0.810.000 ~ 52.0001.8、2.5、3.3±0.5
±2.0
−30℃~+85℃
−40℃~+105℃
Inventory Download
TX22TV222.5x2.0x0.9510.000 ~ 52.0001.8、2.5、3.3±0.5
±2.0
−30℃~+85℃
−40℃~+105℃
Inventory Download
TX32TV323.2x2.5x1.210.000 ~ 52.0001.8、2.5、3.3±0.5
±2.0
−30℃~+85℃
−40℃~+105℃
Inventory Download

VCXO

OutlineModelDimension (mm)Frequency Range (MHz)Voltage Options (V)Stability Options (ppm)Operating Temp Range OptionsECADDistributor InventorySpecification
V3V33.2x2.5x1.21.000 ~ 50.0003.3±20
±25
−20~+70℃
−40~+85℃
Inventory Download
V5V55.0x3.2x1.31.000 ~ 52.0003.3、5.0±20
±25
−20~+70℃
−40~+85℃
Inventory Download
V7V77.0x5.0x1.91.000 ~ 52.0003.3、5.0±20
±25
−20~+70℃
−40~+85℃
Inventory Download
Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2008 (the “RoHS Regulations”). These Regulations implement EU Directive 2002/95 which bans the placing on the EU market of new electrical and electronic equipment containing more than agreed levels of lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE) flame retardants.
